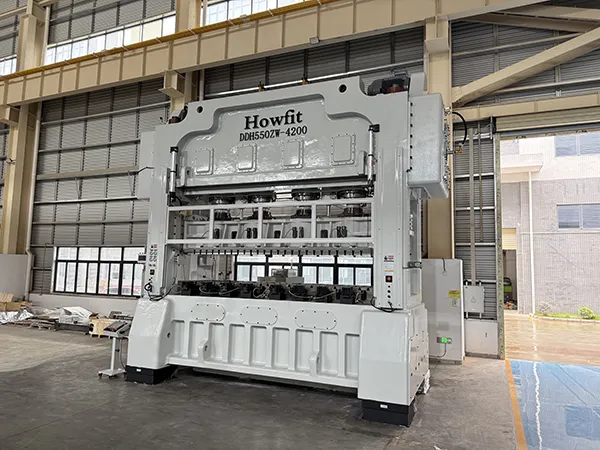

Straight Side Press with 4 Guide Posts, 550 ton
DDH Series Mechanical Presses
This high-speed press is built with a central 4 guide post structure and an 8-way roller slide guiding system, providing exceptional load capacity, precision alignment, and long-term stability even under eccentric loads. Its extra-wide working table (4200×1300 mm), along with a shut height of 500-600 mm, stroke of 50 mm, pressing capacity of 5500 kN, and speed of 80-200 spm, makes it well-suited for complex, high-precision stamping applications.
- Extra-wide working table: The 4200 mm table accommodates large dies and supports complex stamping processes.
- Stable bottom dead center repeatability: Minimizes die wear and maintains product accuracy, ensuring consistent precision and longer die life.
- Minimized thermal displacement: Advanced thermal control technology, originally applied in smaller high-speed presses, effectively reduces heat distortion, improving precision during continuous operation.
- High-precision 8-way roller slide guiding system: The extended roller guide design provides excellent load-bearing capability, resists eccentric load deflection, and offers easy maintenance for long-term reliability.

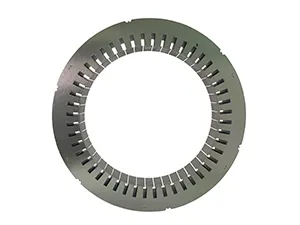

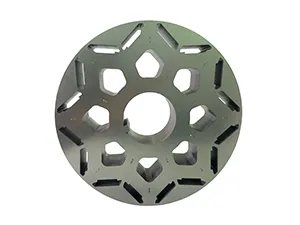

Rotor and stator lamination stamping
Rotor and stator lamination stamping

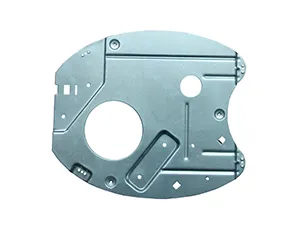

Metal hardware stamping

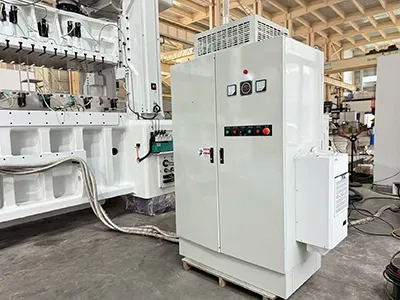

Motor

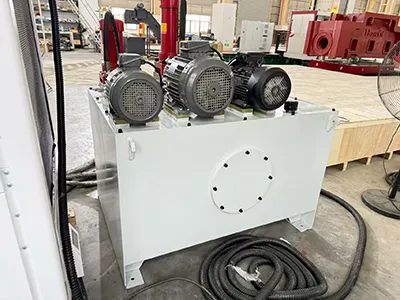

Hydraulic lubrication pump

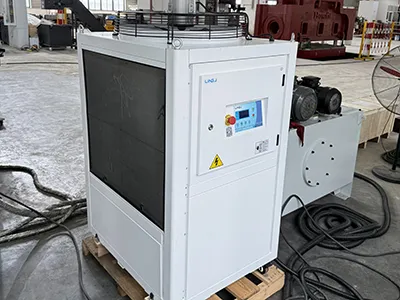

Oil chiller

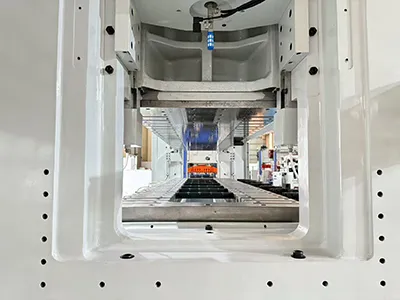

Feeding inlet

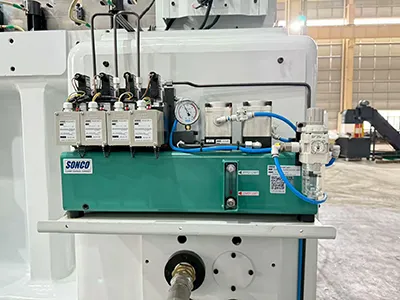

Locking pump

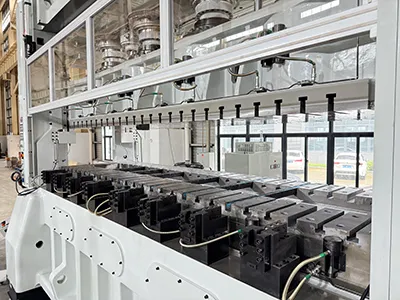

Worktable

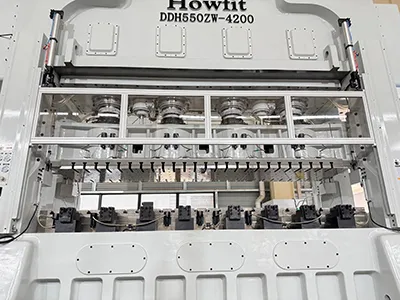

Central guide post and slide

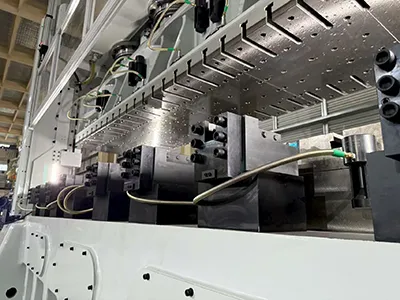

Slide / die arm bracket

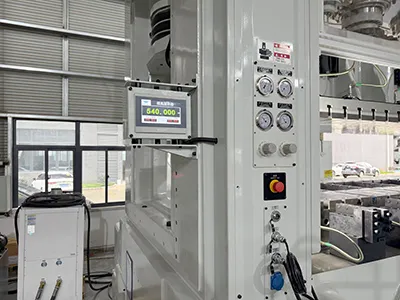

Die height indicator / hydraulic pressure gauge / air pressure gauge

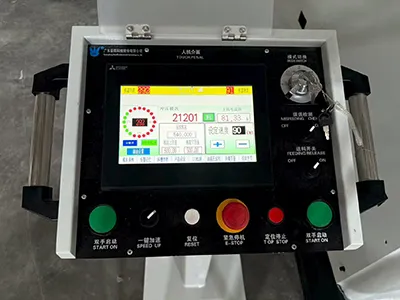

Control panel

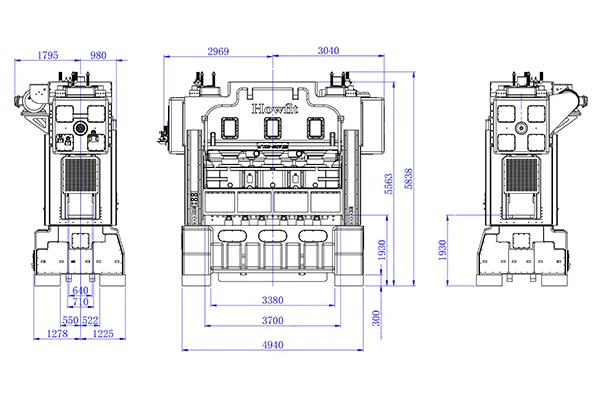

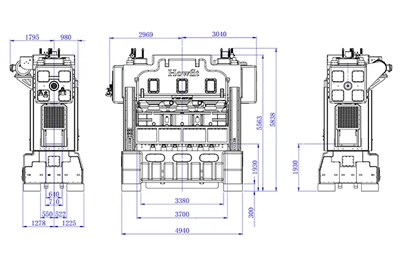

Outline Dimensions
Technical Specifications
| Press capacity (kN) | 5500 |
| Stroke (mm) | 50 |
| Rated capacity point (mm) | 3.2 |
| Stroke speed (spm) | 80-200 |
| Shut height (mm) | 500-600 (slide pad thickness 40mm) |
| Worktable size (bolster) (mm) | 4200×1300 |
| Slide area (mm) | 4200×1000 |
| Slide adjustment (mm) | 100 |
| Scrap hole size (mm) | 3800×500 |
| Bed side opening (mm) | 740 |
| Upper die lifting capacity (kg) | 4000 |
| Main motor (kW) | 45×6P-2 units (left-right dual drive) |
| Feed line height (mm) | 350±50 (need to be confirmed in advance) |

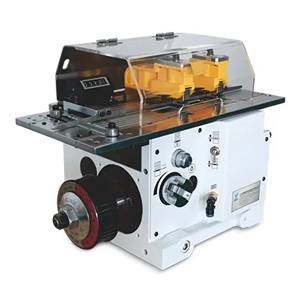

Feeds metal coils continuously into the press with a step control for stable, uninterrupted stamping

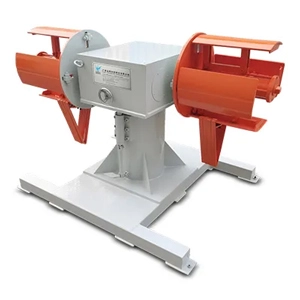

Handles the uncoiling and recoiling of rolled sheet materials, ensuring smooth material supply during stampig

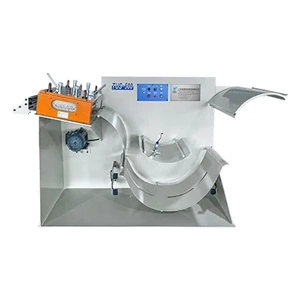

Uses upper and lower rollers to flatten metal sheets, improving evenness and ensuring precise feeding for subsequent stamping operations

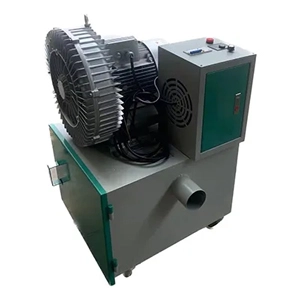

Collects and chops scrap generated during stamping to maintain a clean and efficient working environment
