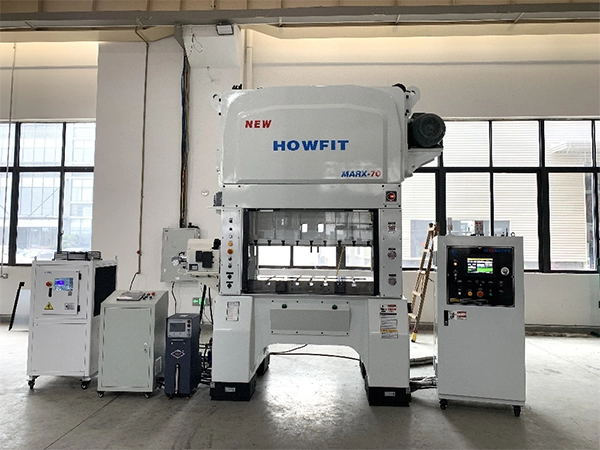

The straight side knuckle joint press is a high-performance metal stamping press engineered for ultra-precision forming applications. With a stroke range of 16 to 40 mm and speeds reaching up to 1000 strokes per minute, it offers multiple tonnage options from 40 to 220 tons, meeting diverse production requirements.

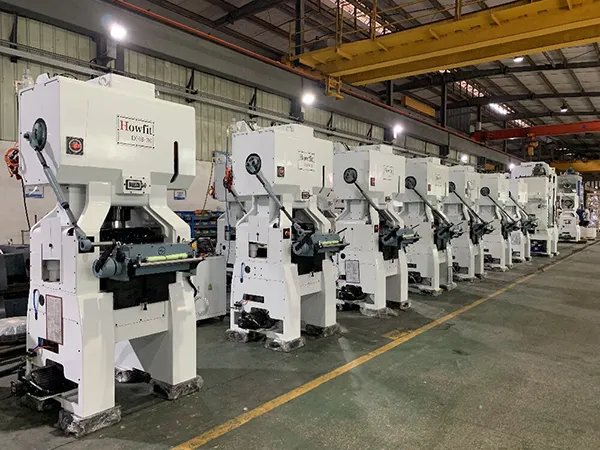

This straight side press adopts an integrated gantry frame structure, with guide posts and slide built as a single, precisely aligned unit. This design eliminates fitting errors between separate components, ensuring smoother slide motion, improved parallel accuracy, and long-term stability during high-speed precision metal stamping.

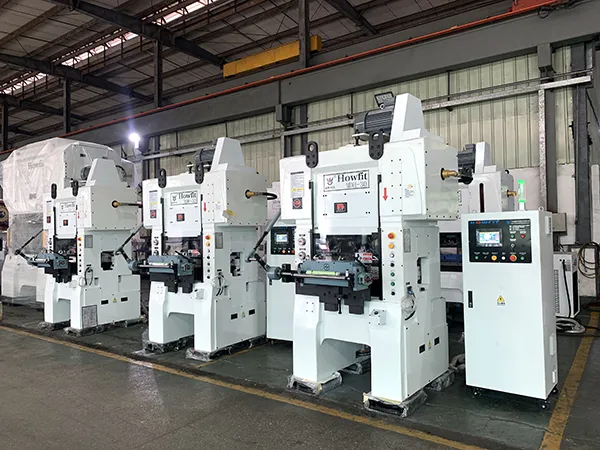

To meet diverse requirements for precision metal stamping, this straight side press offers a pressing capacity from 30 to 200 tons, with a stroke length of 20-50 mm and speeds ranging from 150 to 800 strokes per minute. Typical applications include lead frame stamping, rotor and stator forming, metal component fabrication, and easy-open can lid production.

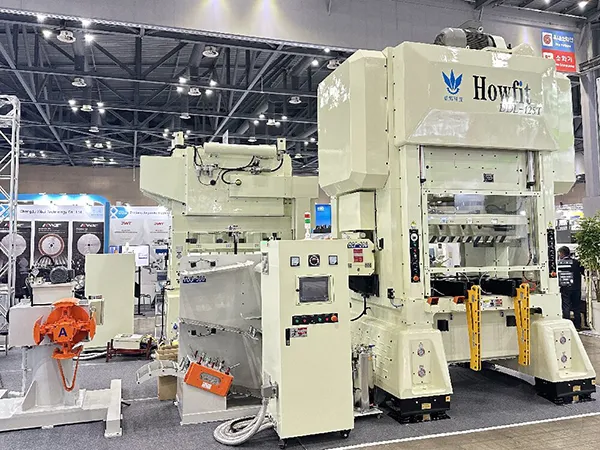

The straight side crank press provides a pressing capacity of 125 to 360 tons and stroke speeds from 100 to 500 strokes per minute, making it suitable for Rotor and stator lamination stamping, home appliance hardware forming, and perforated metal sheet stamping. It can be easily integrated with feeders, decoilers, straighteners, and scrap choppers to form a complete automated metal stamping line.

DDL Series (125-360 ton)

DDH Series (85-630 ton)

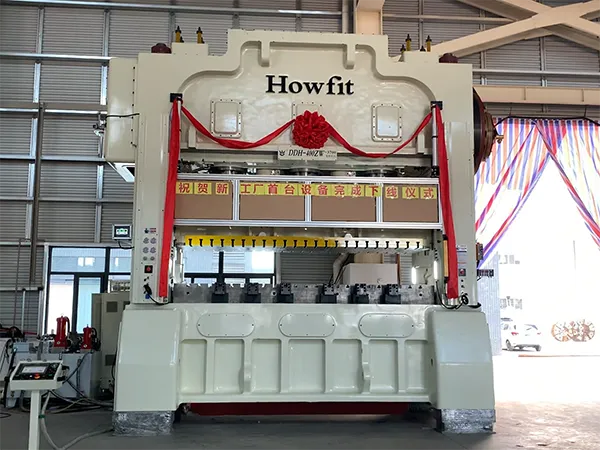

This high-speed metal stamping press adopts a 3 guide post, 8-way roller slide guiding system, ensuring exceptional load capacity and precise alignment. It maintains long-term stability and accuracy even under off-center loading conditions. The extra-wide worktable (3700×1200 mm) supports complex and large-scale stamping applications.

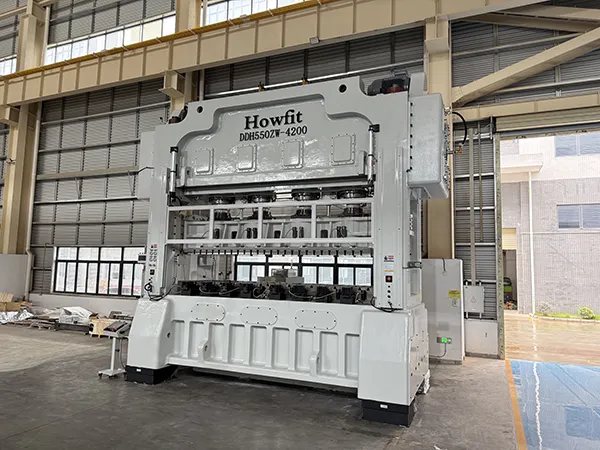

This high-speed press is built with a central 4 guide post structure and an 8-way roller slide guiding system, providing exceptional load capacity, precision alignment, and long-term stability even under eccentric loads. Its extra-wide working table (4200×1300 mm), along with a shut height of 500-600 mm, stroke of 50 mm, pressing capacity of 5500 kN, and speed of 80-200 spm, makes it well-suited for complex, high-precision stamping applications.
