C-Frame Press with 2 Guide Posts, 65 ton
HCW Series Mechanical Presses
This high-speed press delivers a pressing force of 650 kN, with a stroke range of 40-60 mm and a speed of 180-350 strokes per minute. The shut height ranges from 220-280 mm, making it ideal for precision stamping of rotors, stators, terminals, lead frames, hardware parts, and can lids. It can be integrated with a feeder, decoiler, straightener, and scrap chopper to support efficient automated stamping lines.
- Constructed with high-strength cast iron and fully stress-relieved for material stability and long-term precision, ideal for continuous stamping operations.
- The dual central post structure uses special alloy copper bushings instead of traditional slide plates, minimizing dynamic friction and thermal deformation for superior accuracy.
- An optional anti-vibration counterbalance system reduces motion impact, ensuring greater precision and operational stability.
- Equipped with a die height display and hydraulic locking system, simplifying die adjustments for faster setup.
- Microcomputer-based HMI control with numerical settings and real-time fault monitoring makes operation intuitive and convenient.
- Electric die height adjustment system with indicator enhances efficiency and precision during mold setup.

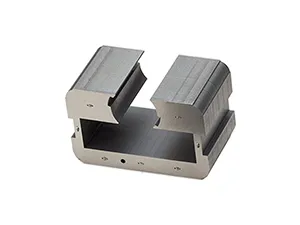

Rotor and stator lamination stamping

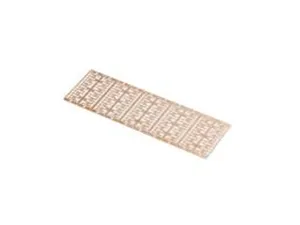

Metal lead frame stamping

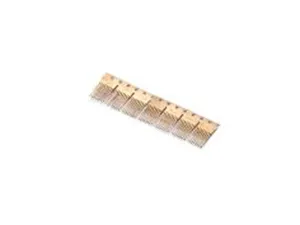

IC chip stamping

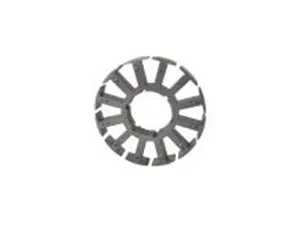

Rotor and stator forming

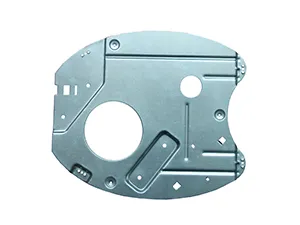

Metal hardware stamping

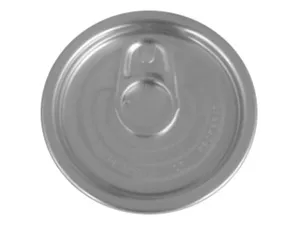

Can Lid Stamping

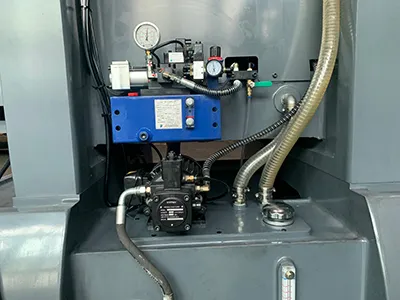

Locking pump

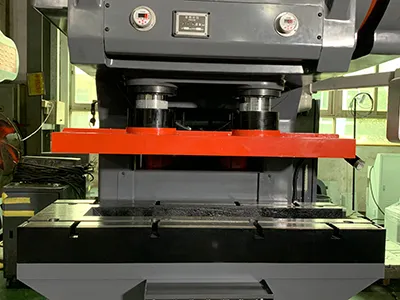

Worktable and slide

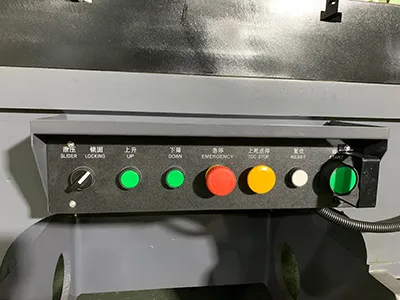

Control buttons

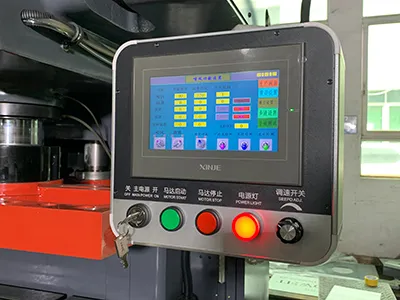

Control panel

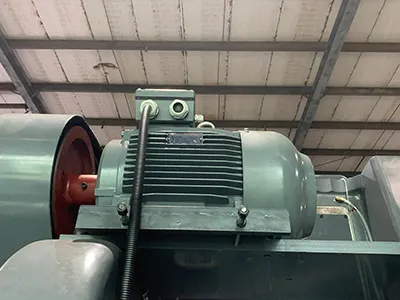

Motor

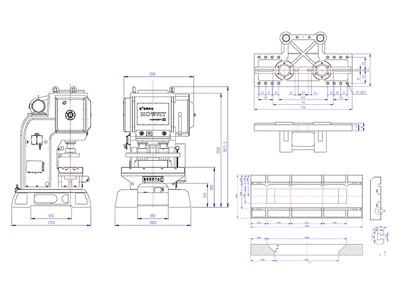

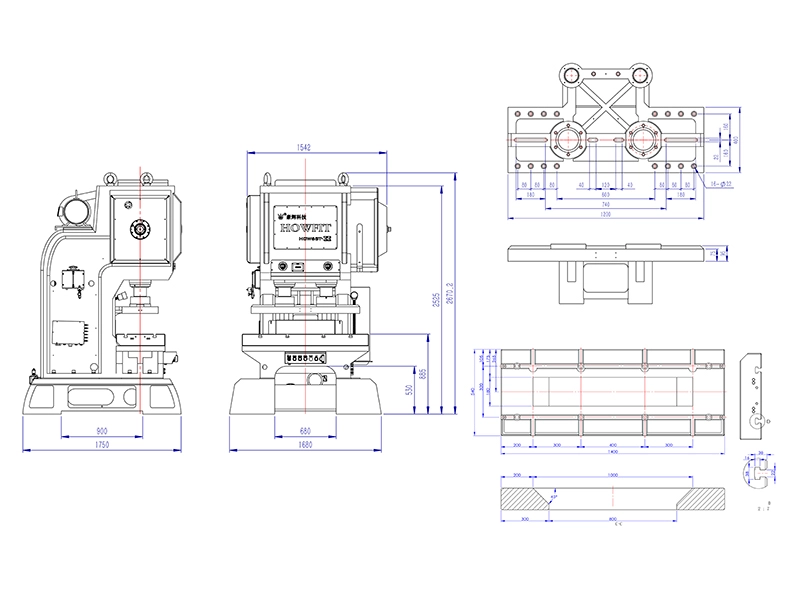

Outline Dimensions
Technical Specifications
| Press capacity (kN) | 650 | ||
| Stroke (mm) | 40 | 50 | 60 |
| Stroke speed (spm) | 180-350 | 180-300 | 180-280 |
| Shut height (mm) | 230-280 | 225-275 | 220-270 |
| Slide adjustment (mm) | 50 | ||
| Worktable size (bolster) (mm) | 1400X540X130 | ||
| Slide area (mm) | 1200X400 | ||
| Scrap hole size (mm) | 180×1000 | ||
| Main motor (kW) | 11×4P | ||
| Machine weight (ton) | 9.2 | ||

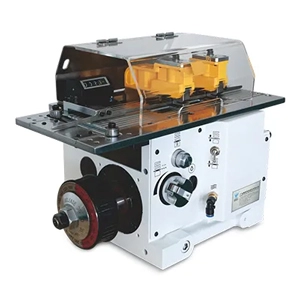

Continuously feeds metal coils into the press for efficient, step-by-step stamping operations

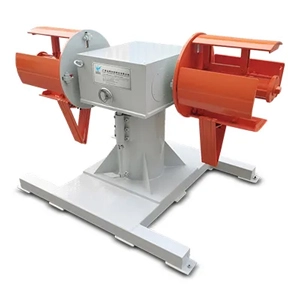

Used for uncoiling and recoiling strip materials during the production process

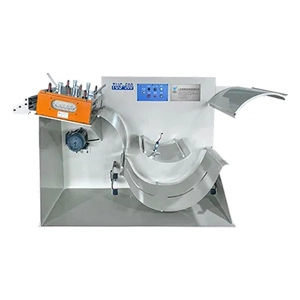

Flattens uneven metal strips through upper and lower rollers to ensure consistent feeding accuracy

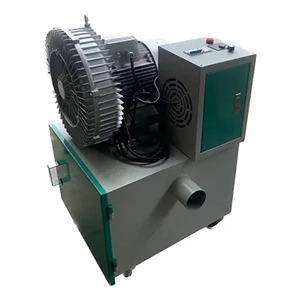

Collects and removes scrap generated during stamping, keeping the production line clean and smooth-running
A customer from Jiangxi customized this 65-ton C-frame double-shaft press for heat sink stamping. Delivered in 2024, the press met all production expectations with excellent precision and stability. The client expressed high satisfaction and plans to purchase additional units as production demand grows.
