C-Frame Press with 3 Guide Posts, 16-80 ton
HC Series Mechanical Presses
Available in multiple configurations, the C-frame press with 3 guide posts offers a pressing capacity from 16 to 80 tons, stroke range of 20-50 mm, and operating speeds between 200-800 spm, with a shut height of 180-300 mm and main motor power from 4-18.5 kW. Designed for Rotor and stator lamination stamping, terminal and lead frame forming, metal component stamping, and can lid production, this stamping press provides versatile performance across a wide range of precision metal forming applications. It can be integrated with a feeder, straightener, decoiler, and scrap chopper to form an automated stamping line.
- The press body is made of high-strength cast iron, fully stress-relieved to ensure long-term dimensional stability and consistent accuracy for continuous stamping operations.
- Adopts a structure with two side guide posts and a central supporting column, using special-alloy copper sleeves instead of traditional slide plates to reduce friction, control thermal deformation, and maintain long-term precision during high-speed operation.
- Optional counterbalancing system reduces vibration during operation, improving accuracy and stability throughout the production cycle.
- Equipped with a die height indicator and hydraulic locking device to simplify die setup and enhance operational efficiency.
- A microcomputer-based user friendly human-machine control interface provides clear numerical data display, fault monitoring, and simplified operation.

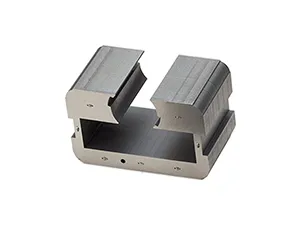

Rotor and stator lamination stamping

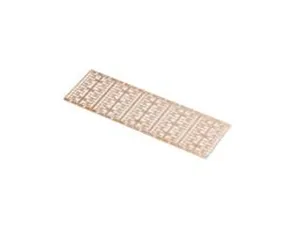

Metal lead frame stamping

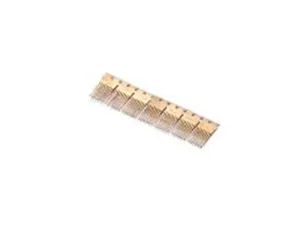

IC chip stamping

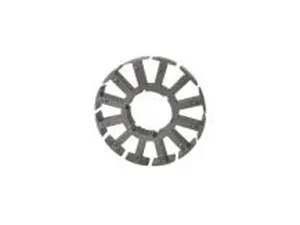

Rotor and stator forming

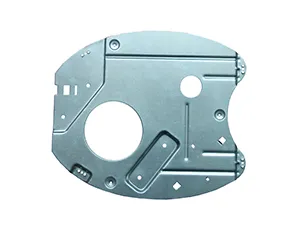

Metal hardware stamping

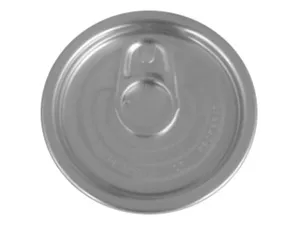

Can Lid Stamping

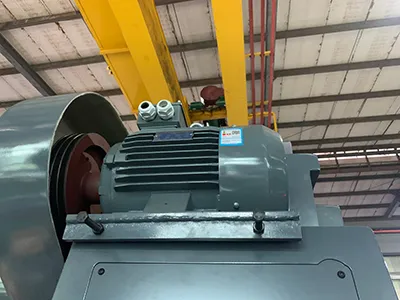

Motor

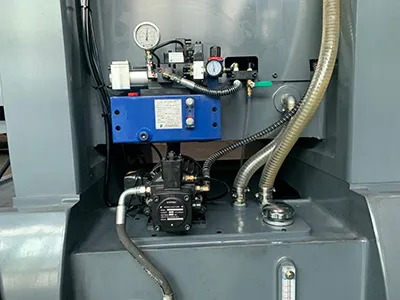

Locking pump

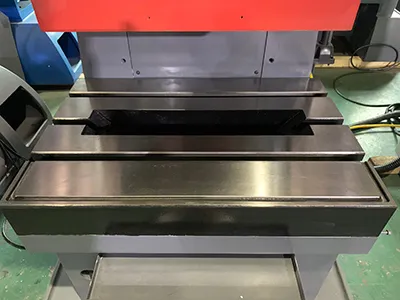

Worktable

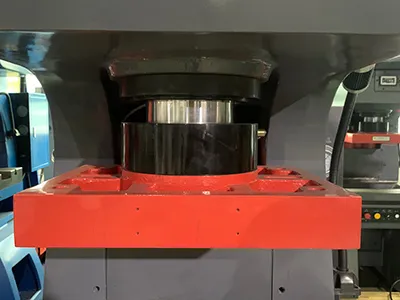

Slide block

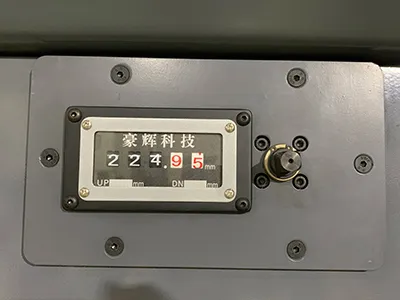

Press angle indicator

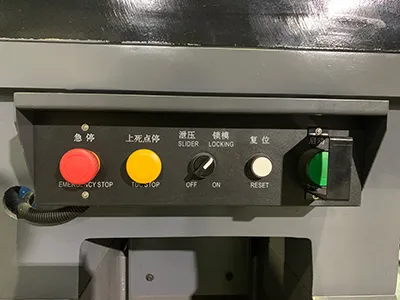

Control buttons

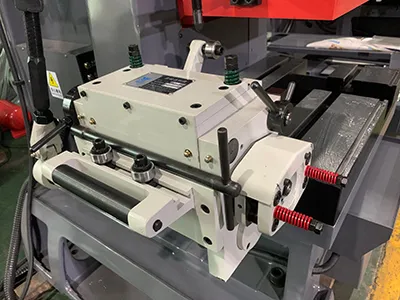

Feeder

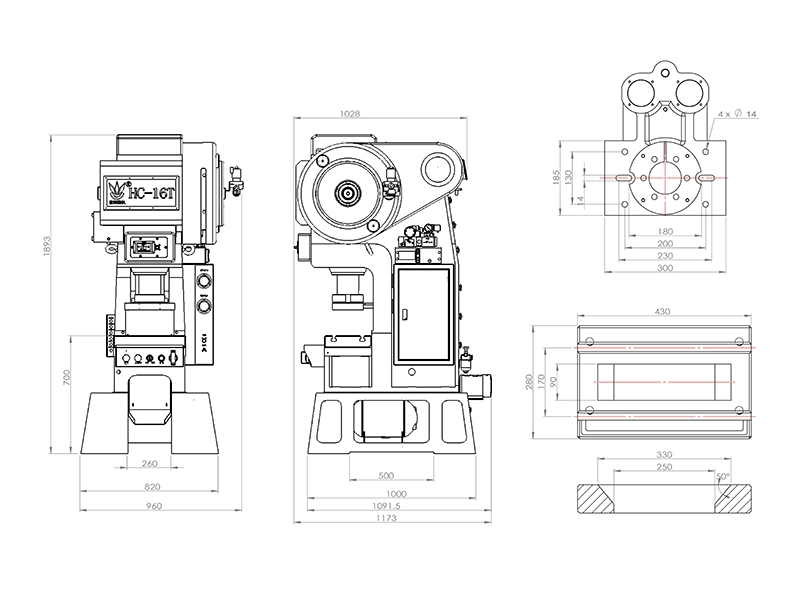

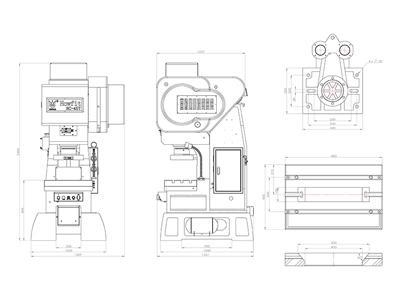

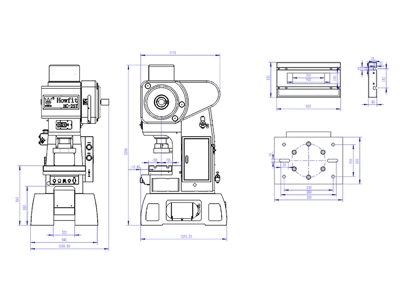

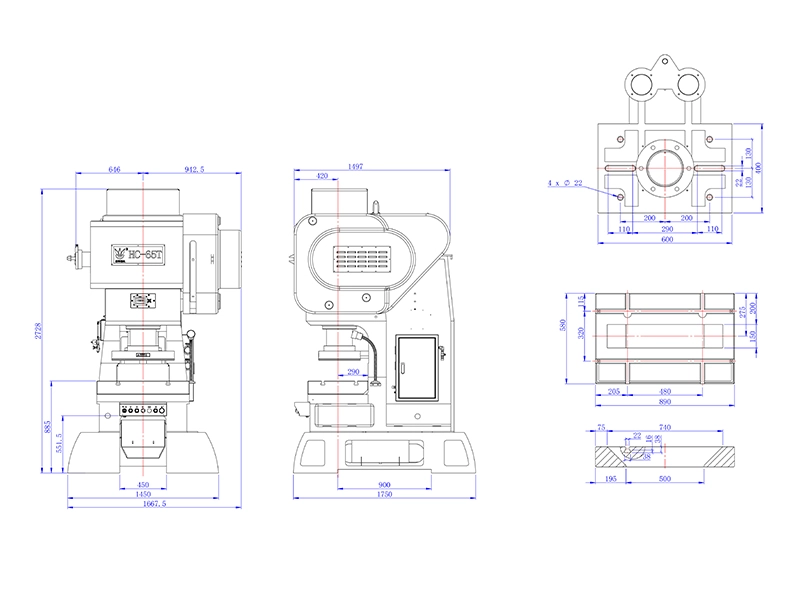

Outline Dimensions
Technical Specifications
| Press capacity (kN) | 160 | ||
| Stroke (mm) | 20 | 25 | 30 |
| Stroke speed (spm) | 200-800 | 200-700 | 200-600 |
| Shut height (mm) | 185-215 | 183-213 | 180-210 |
| Slide adjustment (mm) | 30 | ||
| Worktable size (bolster) (mm) | 430×280×70 | ||
| Slide area (mm) | 300×185 | ||
| Scrap hole size (mm) | 90×330 | ||
| Main motor (kW) | 4×4P | ||
| Machine weight (ton) | 1.95 | ||

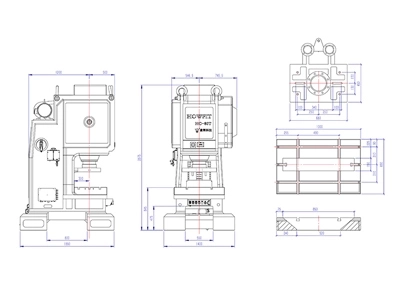

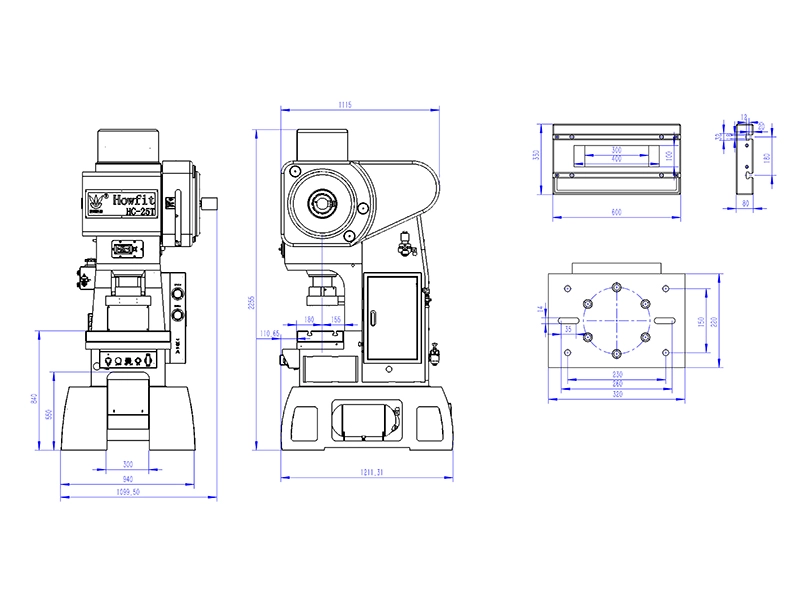

Outline Dimensions
Technical Specifications
| Press capacity (kN) | 250 | ||
| Stroke (mm) | 20 | 30 | 40 |
| Stroke speed (spm) | 200-700 | 200-600 | 200-500 |
| Shut height (mm) | 185-215 | 180-210 | 175-205 |
| Slide adjustment (mm) | 30 | ||
| Worktable size (bolster) (mm) | 600×330×80 | ||
| Slide area (mm) | 320×220 | ||
| Scrap hole size (mm) | 100×400 | ||
| Main motor (kW) | 4×4P | ||
| Machine weight (ton) | 3.6 | ||

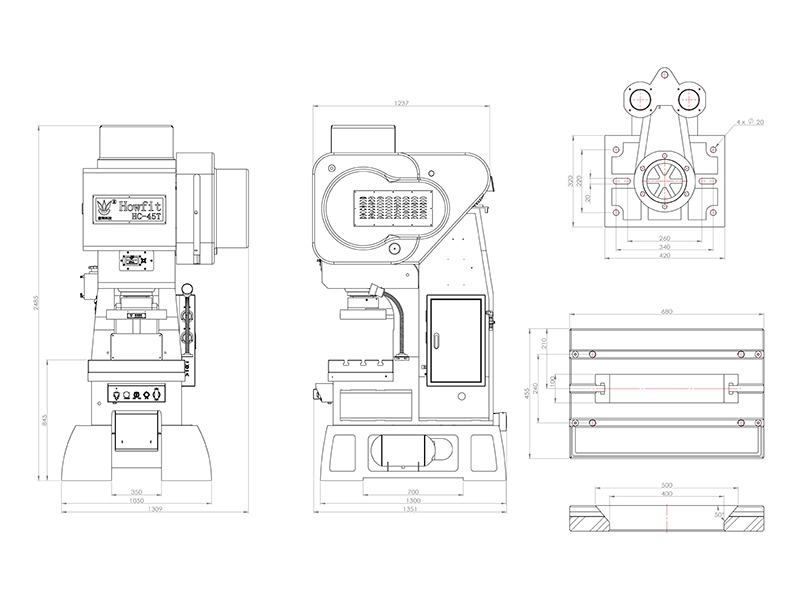

Outline Dimensions
Technical Specifications
| Press capacity (kN) | 450 | ||
| Stroke (mm) | 30 | 40 | 50 |
| Stroke speed (spm) | 200-700 | 200-600 | 200-500 |
| Shut height (mm) | 210-240 | 205-235 | 200-230 |
| Slide adjustment (mm) | 30 | ||
| Worktable size (bolster) (mm) | 680×455×90 | ||
| Slide area (mm) | 420×320 | ||
| Scrap hole size (mm) | 100×500 | ||
| Main motor (kW) | 5.5×4P | ||
| Machine weight (ton) | 4.8 | ||

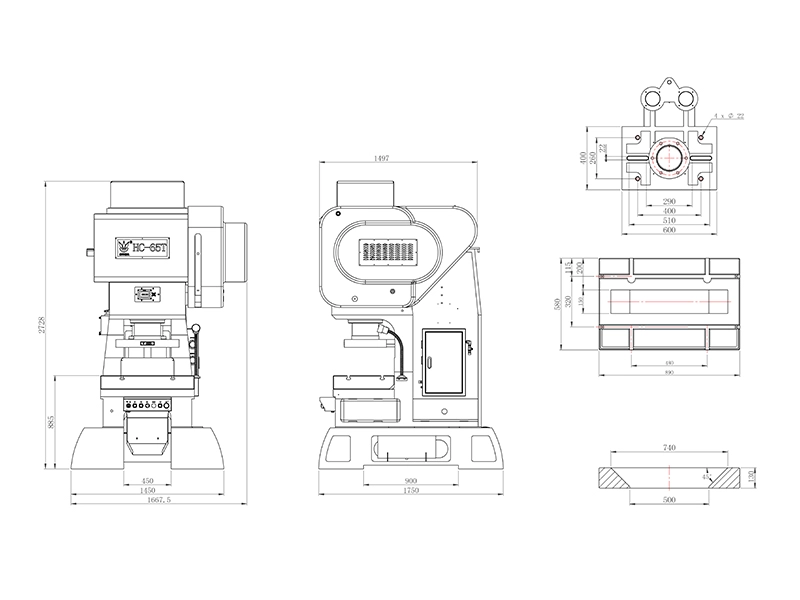

Outline Dimensions
Technical Specifications
| Press capacity (kN) | 650 | ||
| Stroke (mm) | 30 | 40 | 50 |
| Stroke speed (spm) | 200-700 | 200-600 | 200-500 |
| Shut height (mm) | 215-265 | 210-260 | 205-255 |
| Slide adjustment (mm) | 50 | ||
| Worktable size (bolster) (mm) | 890×540×105 | ||
| Slide area (mm) | 600×400 | ||
| Scrap hole size (mm) | 120×740 | ||
| Main motor (kW) | 11×4P | ||
| Machine weight (ton) | 7.5 | ||
Outline Dimensions
Technical Specifications
| Press capacity (kN) | 650 | ||
| Stroke (mm) | 30 | 40 | 50 |
| Stroke speed (spm) | 200-600 | 200-550 | 200-500 |
| Shut height (mm) | 215-265 | 210-260 | 205-255 |
| Slide adjustment (mm) | 50 | ||
| Worktable size (bolster) (mm) | 890×580×130 | ||
| Slide area (mm) | 600×400 | ||
| Scrap hole size (mm) | 150×740 | ||
| Main motor (kW) | 11×4P | ||
| Machine weight (ton) | 9.2 | ||

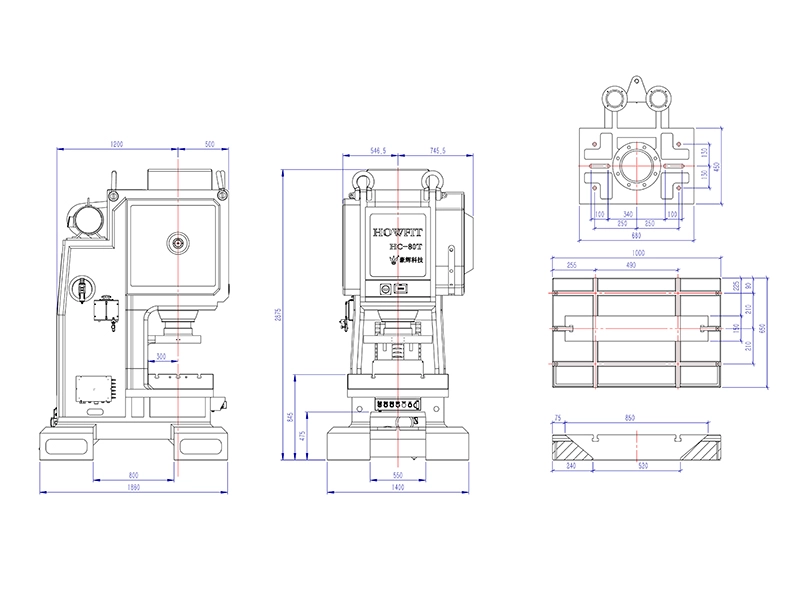

Outline Dimensions
Technical Specifications
| Press capacity (kN) | 800 | ||
| Stroke (mm) | 30 | 40 | 50 |
| Stroke speed (spm) | 200-500 | 200-400 | 200-350 |
| Shut height (mm) | 250-300 | 245-295 | 240-290 |
| Slide adjustment (mm) | 50 | ||
| Worktable size (bolster) (mm) | 1000×650×130 | ||
| Slide area (mm) | 680×450 | ||
| Scrap hole size (mm) | 150×820 | ||
| Main motor (kW) | 18.5×4P | ||
| Machine weight (ton) | 14 | ||
Automatically advances metal coil strips into the press at controlled intervals for efficient, continuous stamping

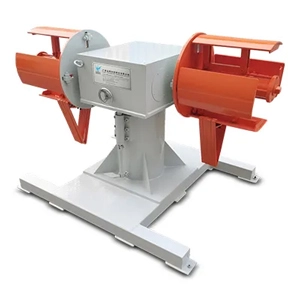

Unwinds and stabilizes coiled metal sheets, ensuring smooth material flow during production

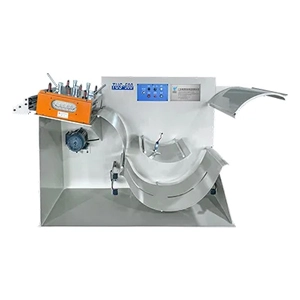

Uses precision rollers to flatten metal strips, eliminating surface irregularities and ensuring accurate feeding

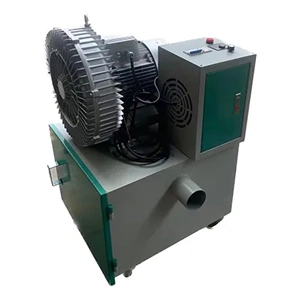

Removes and cuts stamping scrap efficiently to keep the workspace clean and maintain steady production

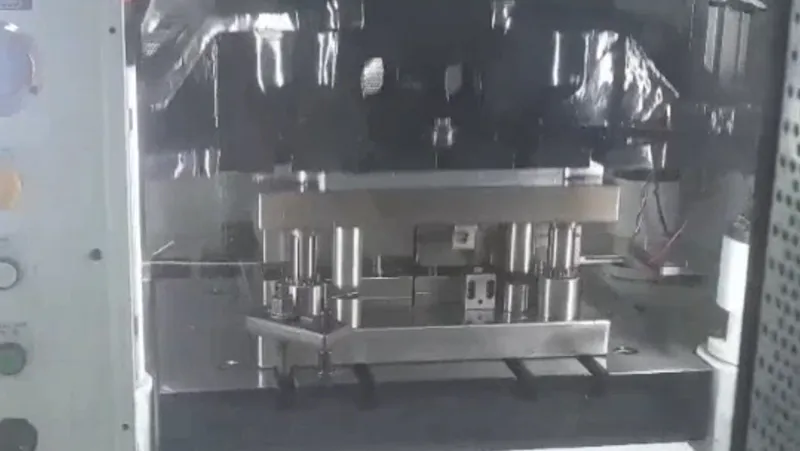

A domestic manufacturer specializing in home appliance hardware components has been using our HC-65T press since 2018. Their facility operates multiple HOWFIT metal stamping presses and continues to purchase two to three new machines every year to expand production capacity.

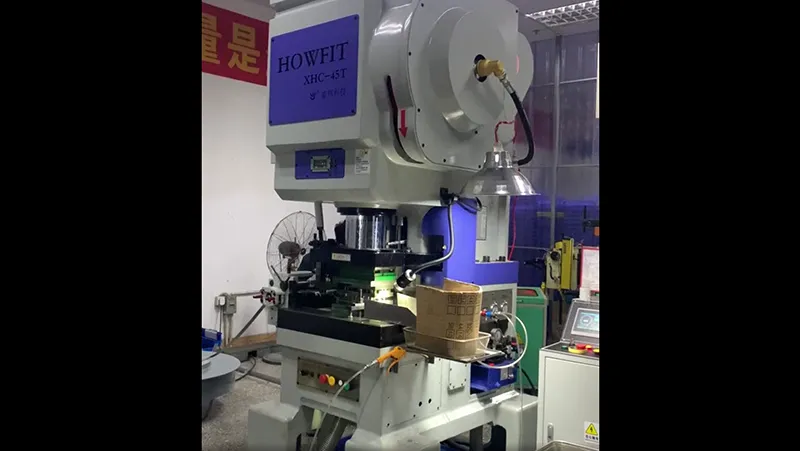

A Chinese client uses the HC-45T press for stamping shielding covers for electronic devices. With large-scale output requirements, their metal stamping presses have been running continuously since 2019 and remain in excellent working condition.

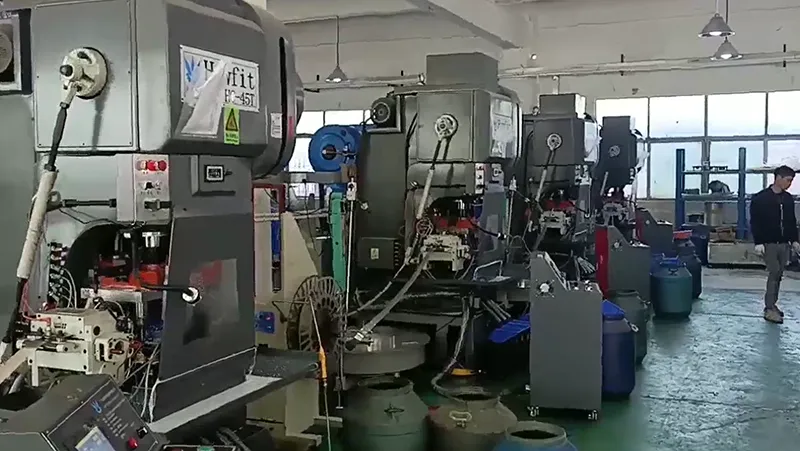

A Guangzhou-based manufacturer uses the HC-45T press for clothing button production. To accommodate this application, the press was equipped with a customized water tray to prevent material overflow. Delivered in 2021, the C-frame press continues to operate smoothly and reliably.

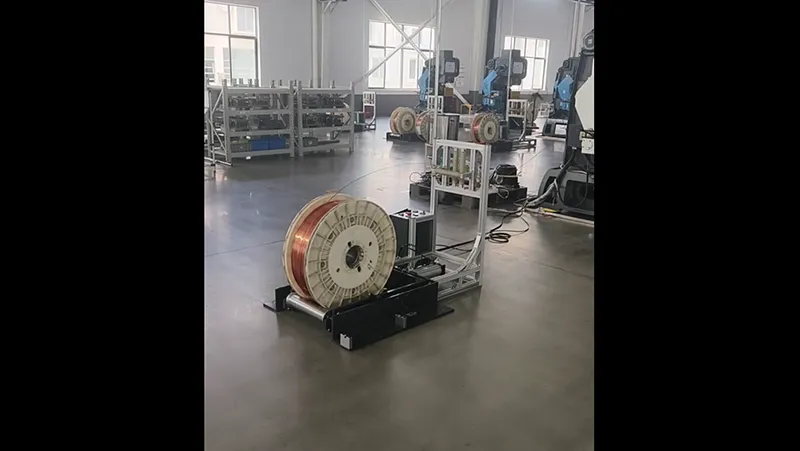

A customer in Shenzhen uses the HC-25T press for small connector production. As their production volume has steadily increased, they have purchased several additional HOWFIT presses to meet growing demand.
