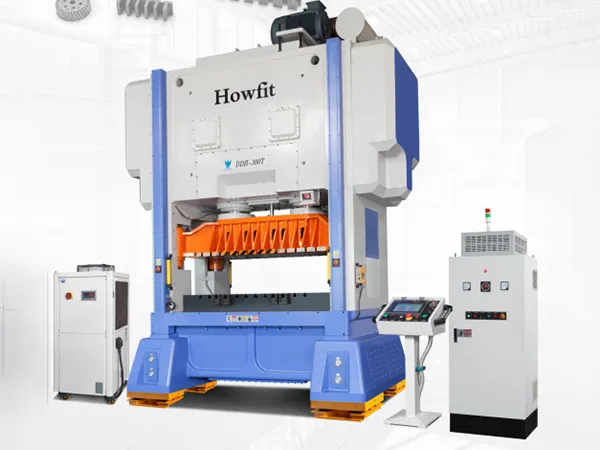

High-Speed Metal Stamping Press, 300 ton
The crank shaft straight side press provides a 300-ton pressing capacity with a 30 mm stroke and an operating speed of 100-450 strokes per minute. It features a 2300×1000 mm worktable, 2300×900 mm slide, and a 1900×300 mm scrap outlet, powered by a 55-kW main motor. Built with a strong, rigid frame for enhanced durability, this metal stamping press is ideal for continuous high-speed stamping of rotors, stators, and various hardware components.
Samples of Stamped Parts

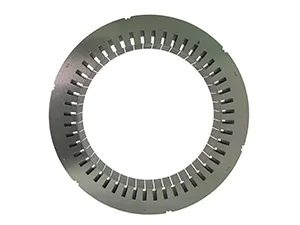

Rotor and stator lamination stamping

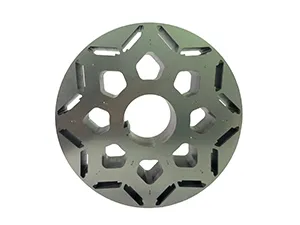

Rotor and stator lamination stamping

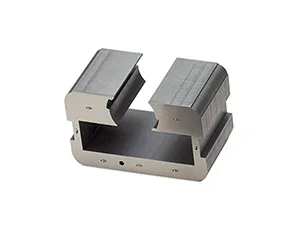

Rotor and stator lamination stamping

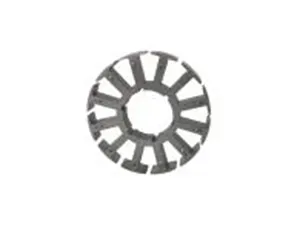

Rotor and stator lamination stamping

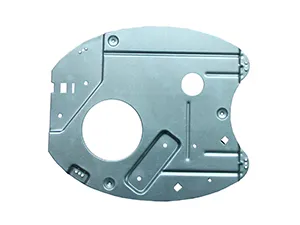

Hardware component stamping

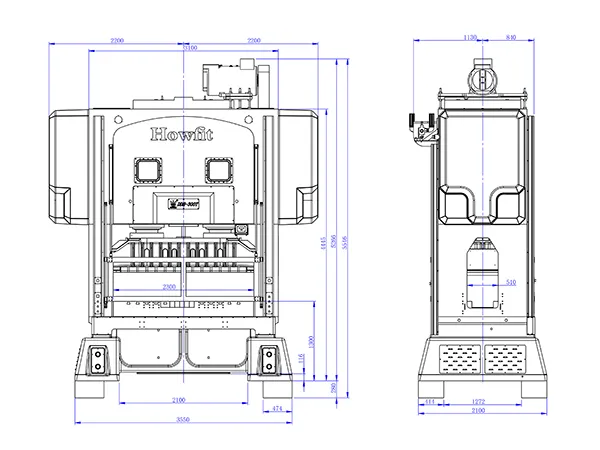

Outline Dimensions
Technical Specifications
| Press capacity (kN) | 3000 |
| Stroke (mm) | 30 |
| Stroke speed (spm) | 100-450 |
| Shut height (mm) | 400-450 |
| Worktable size (bolster) (mm) | 2300×1000 |
| Slide area (mm) | 2300×900 |
| Slide adjustment (mm) | 50 |
| Scrap hole size (mm) | 1900×300 |
| Motor (kW) | 55×4P |
| Machine weight (ton) | 65 |
