C-Frame Press with 5 Guide Posts, 85 ton

HHC Series Mechanical Presses

C-Frame Press, 5 Guide Posts (85 ton)
  • C-Frame Press, 5 Guide Posts (85 ton)
  • C-Frame Press, 5 Guide Posts (85 ton)
  • C-Frame Press, 5 Guide Posts (85 ton)
    • Request a Quote

    This precision C-frame press features a stroke range of 30-50 mm, speeds of 200-600 strokes per minute, and a shut height of 305-365 mm. Powered by an 18.5 kW main motor, it is designed for precision metal stamping applications such as rotor and stator cores, terminals, lead frames, hardware components, and can lids. It can be integrated with a feeder, straightener, decoiler, and scrap chopper to form a complete metal stamping line.

    Features
    • The high-strength cast iron frame is fully stress-relieved to ensure dimensional stability and consistent accuracy, ideal for continuous stamping production.
    • Additional side guide posts are incorporated into the traditional slide structure to improve anti-eccentric loading capability, reduce unilateral wear, and support large dies and long progressive operations.
    • Equipped with a hydraulic die locking system and height indicator for convenient die adjustment and secure setup.
    • The human–machine interface offers digital parameter control and real-time fault monitoring for simple and efficient operation.
    • Features an electric die height adjustment mechanism with a height indicator for precise and user-friendly setup.
    Request a Quote
    Samples of Stamped Parts

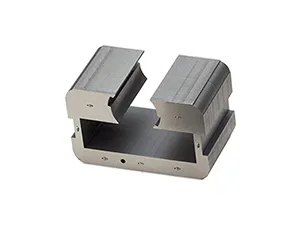

    • Rotor and stator lamination stampingRotor and stator lamination stamping

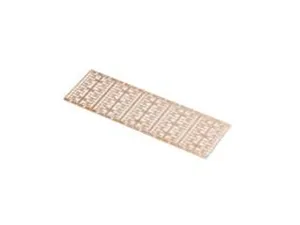

    • Metal lead frame stampingMetal lead frame stamping

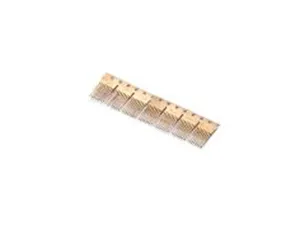

    • IC chip stampingIC chip stamping

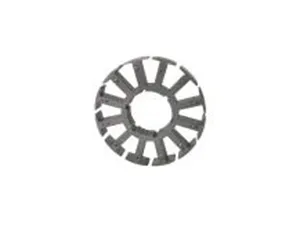

    • Rotor and stator formingRotor and stator forming

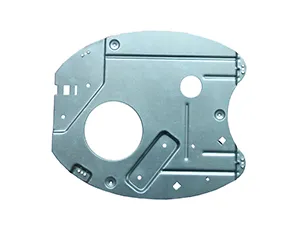

    • Metal hardware stampingMetal hardware stamping

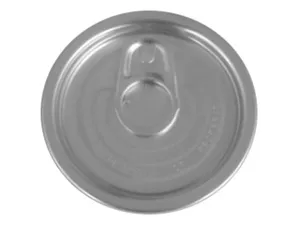

    • Can Lid StampingCan Lid Stamping
    Main Components

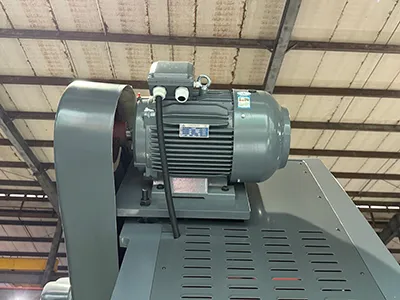

    • MotorMotor

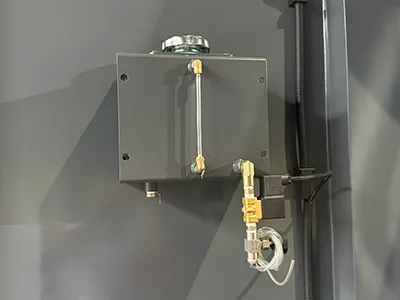

    • Lubrication oil tankLubrication oil tank

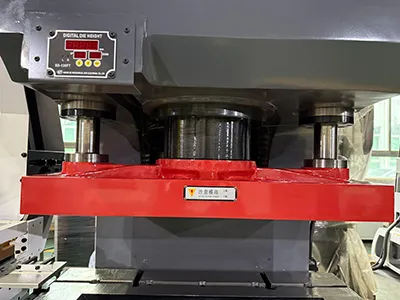

    • Slide blockSlide block

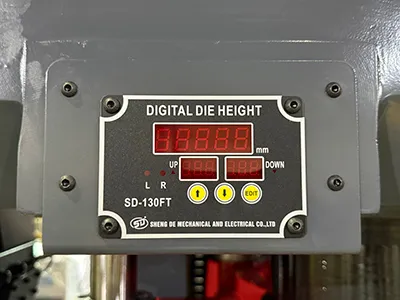

    • Shut height indicator / press angle displayShut height indicator / press angle display

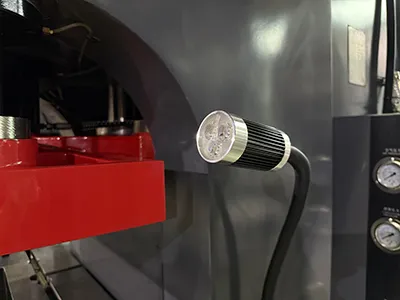

    • Work lightWork light

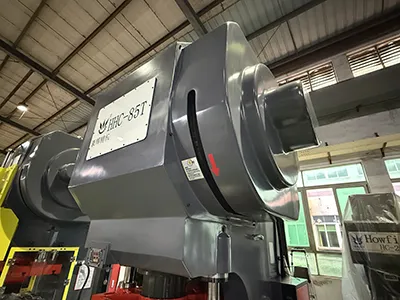

    • Power systemPower system

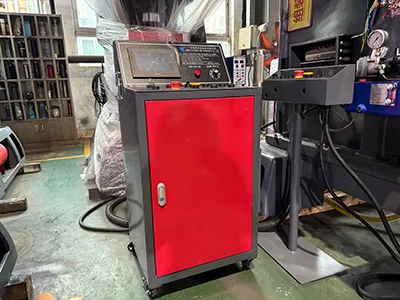

    • Electric cabinetElectric cabinet

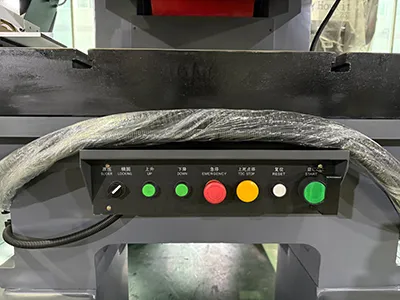

    • Control buttonsControl buttons
    • FeederFeeder

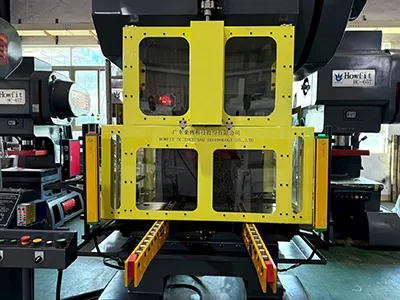

    • Pneumatic safety door / safety light curtain / die arm (optional)Pneumatic safety door / safety light curtain / die arm (optional)
    Model Options
    Mechanical C-Frame Press (85 ton), HHC-85T

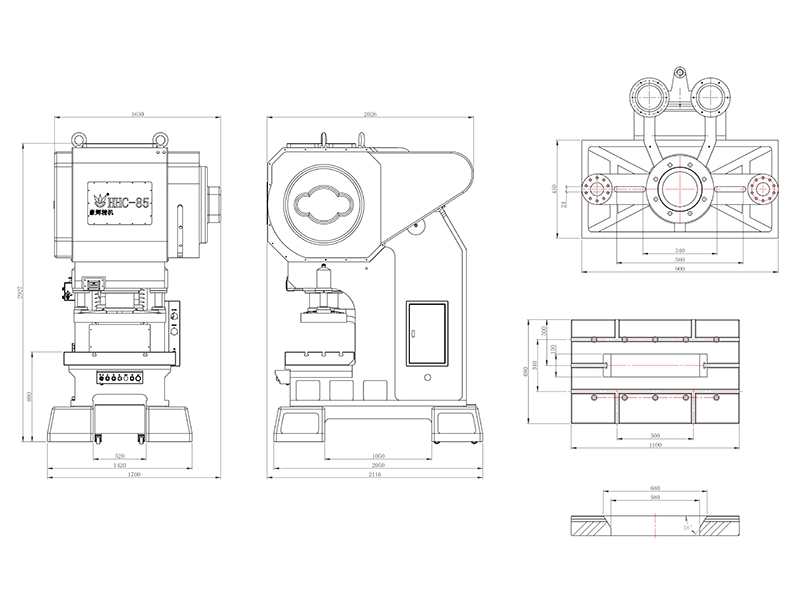

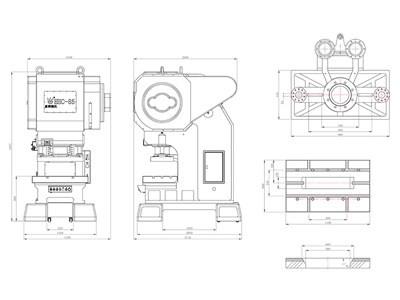

    Outline Dimensions

    • Mechanical C-Frame Press (85 ton), HHC-85T
    Request a Quote

    Technical Specifications

    Press capacity (kN) 850
    Stroke (mm) 30 40 50
    Stroke speed (spm) 200-600 200-550 200-500
    Shut height (mm) 315-365 310-360 305-355
    Slide adjustment (mm) 50
    Worktable size (bolster) (mm) 110×680×130
    Slide area (mm) 900×450
    Scrap hole size (mm) 150×820
    Main motor (kW) 18.5×4P
    Machine weight (ton) 14
    Auxiliary equipment

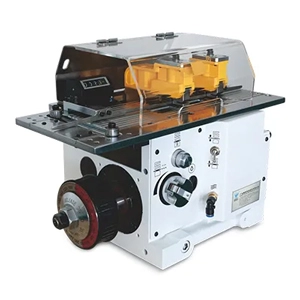

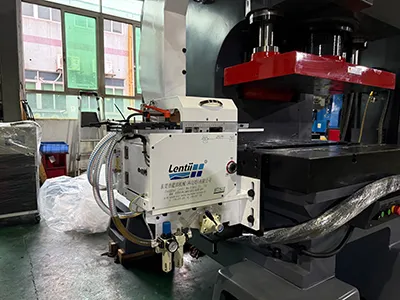

    Feeder
    Feeder

    Continuously feeds metal coils into the press for high-speed, stepwise stamping operations

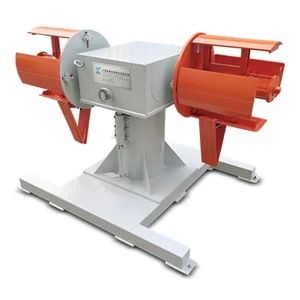

    Decoiler
    Decoiler

    Used for uncoiling and recoiling metal strip during production

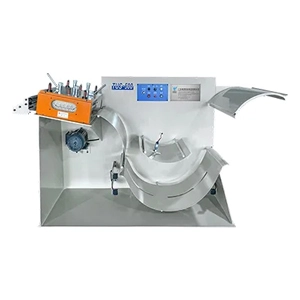

    Straightener
    Straightener

    Levels uneven metal sheets through upper and lower rollers to ensure flat, consistent material feed

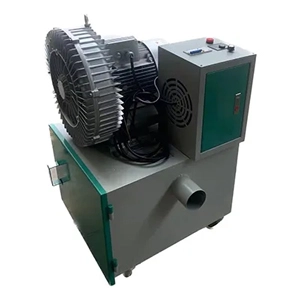

    Scrap chopper
    Scrap chopper

    Collects and removes waste generated during the stamping process, keeping the production area clean and efficient

    Success Stories

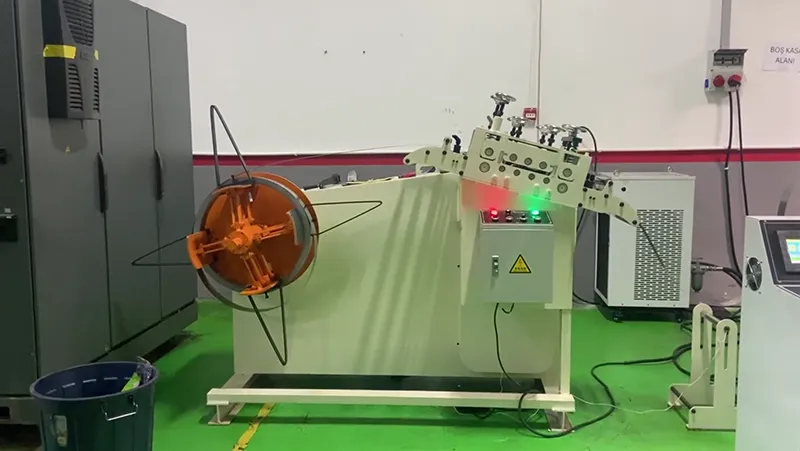

    HHC-85T for metal hardware stamping – Turkey
    HHC-85T for metal hardware stamping – Turkey

    A Turkish customer, who is a supplier for Toyota, purchased our HHC-85T press in 2023 for producing automotive components such as license plate clips. They were highly satisfied with the performance and reliability of the metal stamping press, later introducing three additional clients and accompanying our sales team for on-site visits, building a strong and lasting partnership.

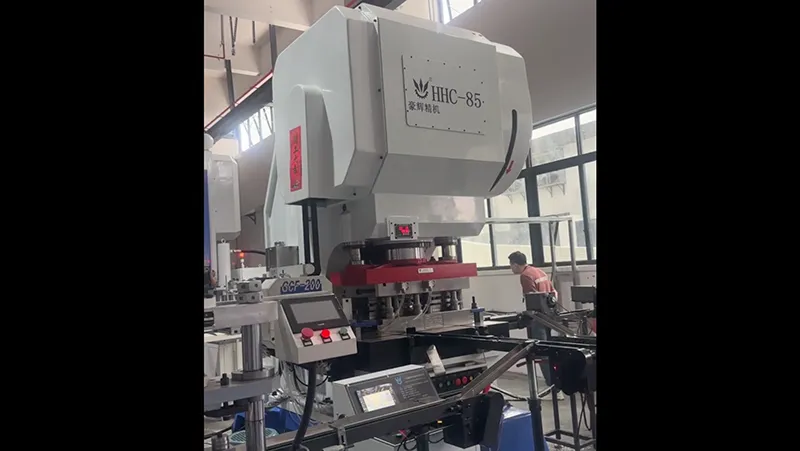

    HHC-85T for Rotor and stator lamination stamping – China
    HHC-85T for Rotor and stator lamination stamping – China

    A customer in China purchased the HHC-85T press for stamping small motor rotor and stator cores. Since its installation in 2019, the stamping press has been running smoothly without issues. The customer continues regular maintenance with our team and reports consistent production stability and excellent operating condition.

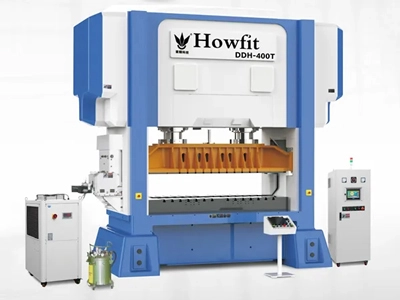

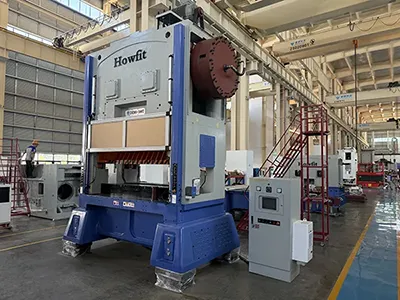

    Related Metal Stamping Presses
    Want to discuss your project or stamping requirements?

    Our experts are ready to help.

    The 85T C-frame press enhances its standard slider structure with fixed guide posts on both sides, greatly improving resistance to off-center loads and reducing uneven die wear. Its 1100×680 mm large worktable easily accommodates long, complex tooling for hardware component stamping.

    With an adjustable shut height range of 305-365 mm (50 mm slide adjustment), the metal stamping press features an electric die adjustment system with height display and hydraulic locking. This setup allows fast and convenient die changeovers, minimizing downtime during frequent mold replacement.

    The 85T metal stamping press adopts a microcomputer-based human–machine interface for digital parameter input (such as speed and die height), with a real-time fault display on screen. The system is intuitive and easy to operate, helping reduce user errors and simplifying operation training.

    The 85T C-frame press (5 guide posts) can be seamlessly integrated with feeders, straighteners, decoilers, and scrap choppers. Its 18.5 kW main motor provides sufficient power to synchronize operation with auxiliary devices, enabling smooth and efficient automated stamping line setup.

    The metal stamping equipment’s fault monitoring system continuously tracks machine status, including the 18.5 kW main motor. In the event of an error, it identifies and displays the exact fault source on screen, allowing maintenance staff to locate and resolve issues quickly, minimizing production interruptions.
